斜齒輪蝸輪蝸桿減速機電機
網站首頁 > BOSERL減速機 > 齒輪蝸輪蝸桿減速機廠家 > SAF系列減速機廠家

SAF37DRN71S4詳細信息

prevnext

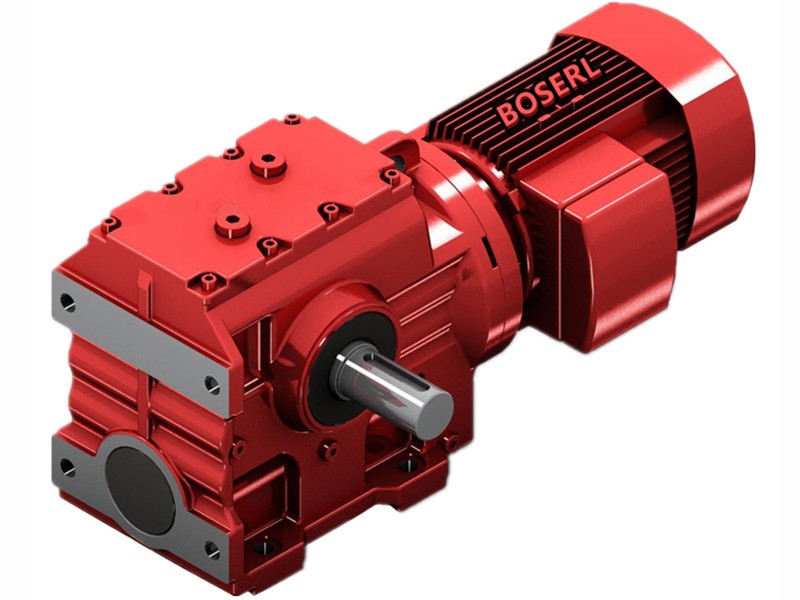

SAF37DRN71S4

訂購熱線：13360667204
  1. 詳細信息

關鍵詞：55KW調速電機減速機一體機_SAF37DRN71S4_SAF37DT71S4

SAF37DRN71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
SAF37DRN71S498.800.25KW13.0rpm108N.m17kg3000N
0.80
SAF37DRN71S486.360.25KW15.0rpm96N.m17kg3000N0.90
SAF37DRN71S480.96
0.25KW16.0rpm91N.m17kg3000N0.95
SAF37DRN71S471.440.25KW18.0rpm81N.m17kg3000N
1.05
SAF37DRN71S463.330.25KW21.0rpm73N.m17kg3000N1.10
SAF37DRN71S455.930.25KW23.0rpm78N.m17kg3000N1.05
SAF37DRN71S451.300.25KW25.0rpm72N.m17kg3000N
1.15
SAF37DRN71S443.680.25KW30.0rpm62N.m17kg3000N1.30
SAF37DRN71S437.660.25KW35.0rpm54N.m17kg3000N1.45
SAF37DRN71S435.100.25KW37.0rpm51N.m17kg3000N
1.55
SAF37DRN71S430.680.25KW42.0rpm45N.m17kg3000N1.70
SAF37DRN71S428.760.25KW45.0rpm42N.m17kg3000N1.80
SAF37DRN71S425.380.25KW51.0rpm37N.m17kg3000N
2.00
SAF37DRN71S422.500.25KW58.0rpm33N.m17kg3000N2.20
SAF37DRN71S419.890.25KW65.0rpm32N.m17kg2870N1.65
SAF37DRN71S418.240.25KW71.0rpm29N.m17kg2820N1.80
SAF37DRN71S415.530.25KW84.0rpm25N.m17kg2710N2.00
SAF37DRN71S413.390.25KW97.0rpm22N.m17kg2620N2.30
SAF37DRN71S412.480.25KW104rpm20N.m17kg2570N2.40
SAF37DRN71S410.910.25KW119rpm18N.m17kg2480N2.70
SAF37DRN71S410.230.25KW127rpm17N.m17kg2440N2.80
SAF37DRN71S49.020.25KW144rpm15N.m17kg2360N3.10
SAF37DRN71S48.000.25KW162rpm13N.m17kg2280N3.40
SAF37DRN71S46.800.25KW191rpm11N.m17kg2180N3.80

SAF37DT71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
SAF37DT71S498.800.25KW13.0rpm108N.m17kg3000N
0.80
SAF37DT71S486.360.25KW15.0rpm96N.m17kg3000N0.90
SAF37DT71S480.96
0.25KW16.0rpm91N.m17kg3000N0.95
SAF37DT71S471.440.25KW18.0rpm81N.m17kg3000N
1.05
SAF37DT71S463.330.25KW21.0rpm73N.m17kg3000N1.10
SAF37DT71S455.930.25KW23.0rpm78N.m17kg3000N1.05
SAF37DT71S451.300.25KW25.0rpm72N.m17kg3000N
1.15
SAF37DT71S443.680.25KW30.0rpm62N.m17kg3000N1.30
SAF37DT71S437.660.25KW35.0rpm54N.m17kg3000N1.45
SAF37DT71S435.100.25KW37.0rpm51N.m17kg3000N
1.55
SAF37DT71S430.680.25KW42.0rpm45N.m17kg3000N1.70
SAF37DT71S428.760.25KW45.0rpm42N.m17kg3000N1.80
SAF37DT71S425.380.25KW51.0rpm37N.m17kg3000N
2.00
SAF37DT71S422.500.25KW58.0rpm33N.m17kg3000N2.20
SAF37DT71S419.890.25KW65.0rpm32N.m17kg2870N1.65
SAF37DT71S418.240.25KW71.0rpm29N.m17kg2820N1.80
SAF37DT71S415.530.25KW84.0rpm25N.m17kg2710N2.00
SAF37DT71S413.390.25KW97.0rpm22N.m17kg2620N2.30
SAF37DT71S412.480.25KW104rpm20N.m17kg2570N2.40
SAF37DT71S410.910.25KW119rpm18N.m17kg2480N2.70
SAF37DT71S410.230.25KW127rpm17N.m17kg2440N2.80
SAF37DT71S49.020.25KW144rpm15N.m17kg2360N3.10
SAF37DT71S48.000.25KW162rpm13N.m17kg2280N3.40
SAF37DT71S46.800.25KW191rpm11N.m17kg2180N3.80

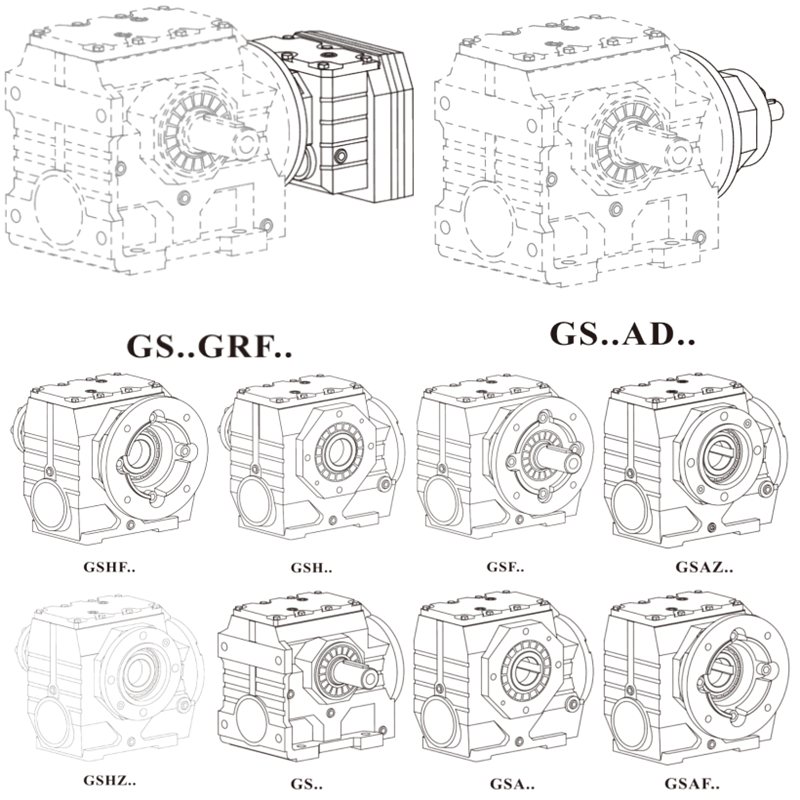

SAF37DRN71S4齒輪減速機馬達類型：

S..DR..底腳安裝斜齒輪自鎖減速機

SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機

SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機

SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機

SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機

SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

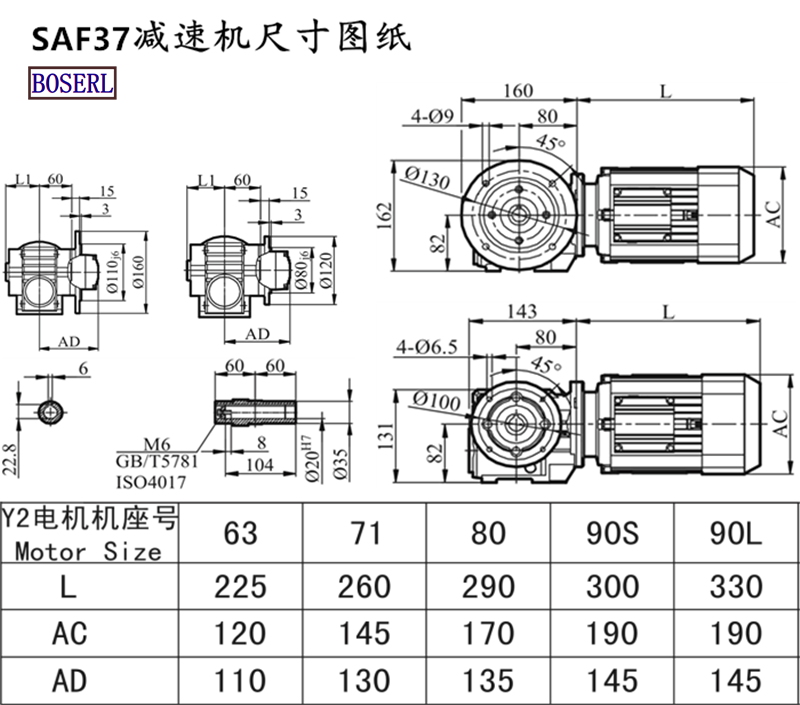

SAF37DRN71S4齒輪減速機馬達安裝尺寸圖紙



SAF37DRN71S4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A(yù)約

法蘭式減速機應用案例展示：

關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家

SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97

SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間


如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:  55KW調速電機減速機一體機 SAF37DRN71S4 SAF37DT71S4

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SAF37DRN71S4減速機樣本 點擊下載
SAF37DRN71S4減速機三維圖紙 點擊下載
