RF47DRE71M4詳細信息
RF47DRE71M4
訂購熱線：13360667204
關鍵詞：18.5KW380伏減速機電機_RF47DRE71M4_RF47DM71M4
RF47DRE71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF47DRE71M4 | 139.99 | 0.37KW | 9.90rpm | 355N.m | 20.5kg | 3490N | 0.85 |
| RF47DRE71M4 | 121.87 | 0.37KW | 11.0rpm | 310N.m | 20.5kg | 5350N | 0.95 |
| RF47DRE71M4 | 114.17 | 0.37KW | 12.0rpm | 290N.m | 20.5kg | 5460N | 1.05 |
| RF47DRE71M4 | 100.86 | 0.37KW | 14.0rpm | 255N.m | 20.5kg | 5620N | 1.15 |
| RF47DRE71M4 | 93.68 | 0.37KW | 15.0rpm | 235N.m | 20.5kg | 5700N | 1.25 |
| RF47DRE71M4 | 84.9 | 0.37KW | 16.0rpm | 215N.m | 20.5kg | 5790N | 1.40 |
| RF47DRE71M4 | 76.23 | 0.37KW | 18.0rpm | 195N.m | 20.5kg | 5870N | 1.55 |
| RF47DRE71M4 | 68.54 | 0.37KW | 20.0rpm | 176N.m | 20.5kg | 5930N | 1.70 |
| RF47DRE71M4 | 64.21 | 0.37KW | 21.0rpm | 164N.m | 20.5kg | 5960N | 1.80 |
| RF47DRE71M4 | 56.73 | 0.37KW | 24.0rpm | 145N.m | 20.5kg | 6010N | 2.10 |
| RF47DRE71M4 | 52.69 | 0.37KW | 26.0rpm | 135N.m | 20.5kg | 5990N | 2.20 |
| RF47DRE71M4 | 47.75 | 0.37KW | 29.0rpm | 122N.m | 20.5kg | 5820N | 2.40 |
| RF47DRE71M4 | 42.87 | 0.37KW | 32.0rpm | 110N.m | 20.5kg | 5650N | 2.70 |
| RF47DRE71M4 | 36.93 | 0.37KW | 37.0rpm | 94N.m | 20.5kg | 5410N | 3.20 |
| RF47DRE71M4 | 34.73 | 0.37KW | 40.0rpm | 89N.m | 20.5kg | 5310N | 3.40 |
| RF47DRE71M4 | 33.79 | 0.37KW | 41.0rpm | 86N.m | 20.5kg | 5270N | 2.80 |
| RF47DRE71M4 | 31.12 | 0.37KW | 44.0rpm | 80N.m | 20.5kg | 5140N | 2.80 |
| RF47DRE71M4 | 26.74 | 0.37KW | 52.0rpm | 68N.m | 20.5kg | 4920N | 4.40 |
| RF47DRE71M4 | 23.28 | 0.37KW | 59.0rpm | 60N.m | 20.5kg | 4720N | 5.00 |
| RF47DRE71M4 | 21.81 | 0.37KW | 63.0rpm | 56N.m | 20.5kg | 4620N | 5.40 |
RF47DM71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF47DM71M4 | 139.99 | 0.37KW | 9.90rpm | 355N.m | 20.5kg | 3490N | 0.85 |
| RF47DM71M4 | 121.87 | 0.37KW | 11.0rpm | 310N.m | 20.5kg | 5350N | 0.95 |
| RF47DM71M4 | 114.17 | 0.37KW | 12.0rpm | 290N.m | 20.5kg | 5460N | 1.05 |
| RF47DM71M4 | 100.86 | 0.37KW | 14.0rpm | 255N.m | 20.5kg | 5620N | 1.15 |
| RF47DM71M4 | 93.68 | 0.37KW | 15.0rpm | 235N.m | 20.5kg | 5700N | 1.25 |
| RF47DM71M4 | 84.9 | 0.37KW | 16.0rpm | 215N.m | 20.5kg | 5790N | 1.40 |
| RF47DM71M4 | 76.23 | 0.37KW | 18.0rpm | 195N.m | 20.5kg | 5870N | 1.55 |
| RF47DM71M4 | 68.54 | 0.37KW | 20.0rpm | 176N.m | 20.5kg | 5930N | 1.70 |
| RF47DM71M4 | 64.21 | 0.37KW | 21.0rpm | 164N.m | 20.5kg | 5960N | 1.80 |
| RF47DM71M4 | 56.73 | 0.37KW | 24.0rpm | 145N.m | 20.5kg | 6010N | 2.10 |
| RF47DM71M4 | 52.69 | 0.37KW | 26.0rpm | 135N.m | 20.5kg | 5990N | 2.20 |
| RF47DM71M4 | 47.75 | 0.37KW | 29.0rpm | 122N.m | 20.5kg | 5820N | 2.40 |
| RF47DM71M4 | 42.87 | 0.37KW | 32.0rpm | 110N.m | 20.5kg | 5650N | 2.70 |
| RF47DM71M4 | 36.93 | 0.37KW | 37.0rpm | 94N.m | 20.5kg | 5410N | 3.20 |
| RF47DM71M4 | 34.73 | 0.37KW | 40.0rpm | 89N.m | 20.5kg | 5310N | 3.40 |
| RF47DM71M4 | 33.79 | 0.37KW | 41.0rpm | 86N.m | 20.5kg | 5270N | 2.80 |
| RF47DM71M4 | 31.12 | 0.37KW | 44.0rpm | 80N.m | 20.5kg | 5140N | 2.80 |
| RF47DM71M4 | 26.74 | 0.37KW | 52.0rpm | 68N.m | 20.5kg | 4920N | 4.40 |
| RF47DM71M4 | 23.28 | 0.37KW | 59.0rpm | 60N.m | 20.5kg | 4720N | 5.00 |
| RF47DM71M4 | 21.81 | 0.37KW | 63.0rpm | 56N.m | 20.5kg | 4620N | 5.40 |

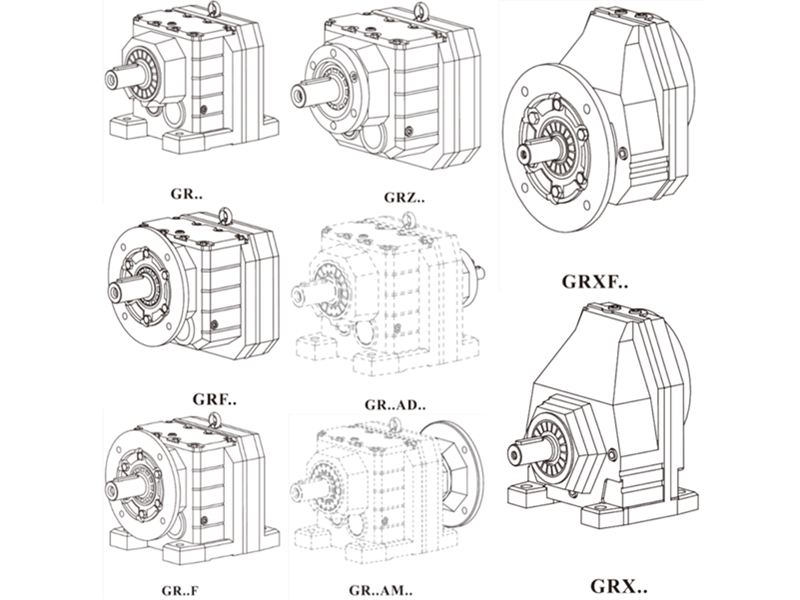

RF47DRE71M4齒輪減速機馬達類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機

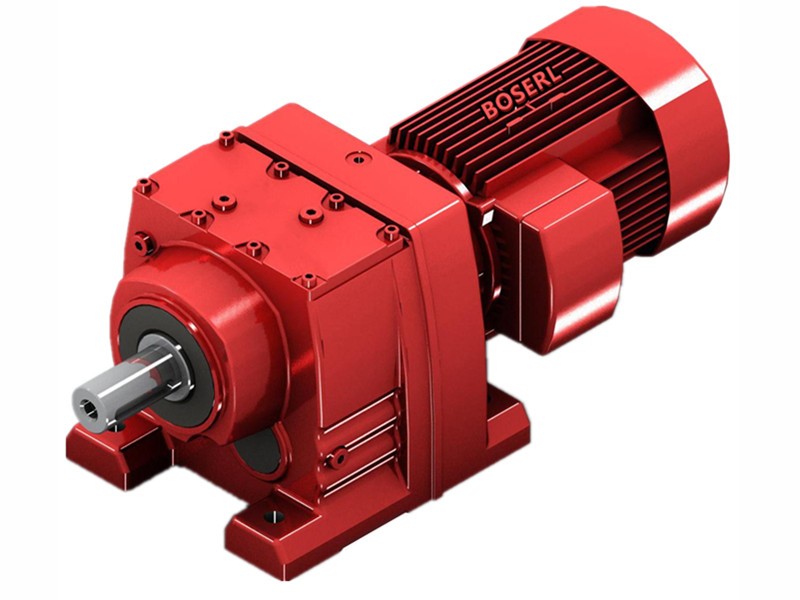

R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機

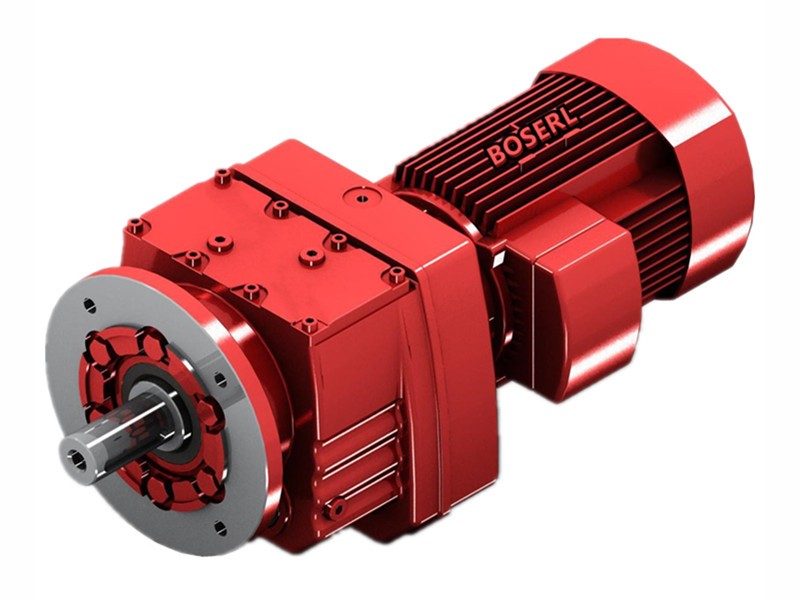

RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

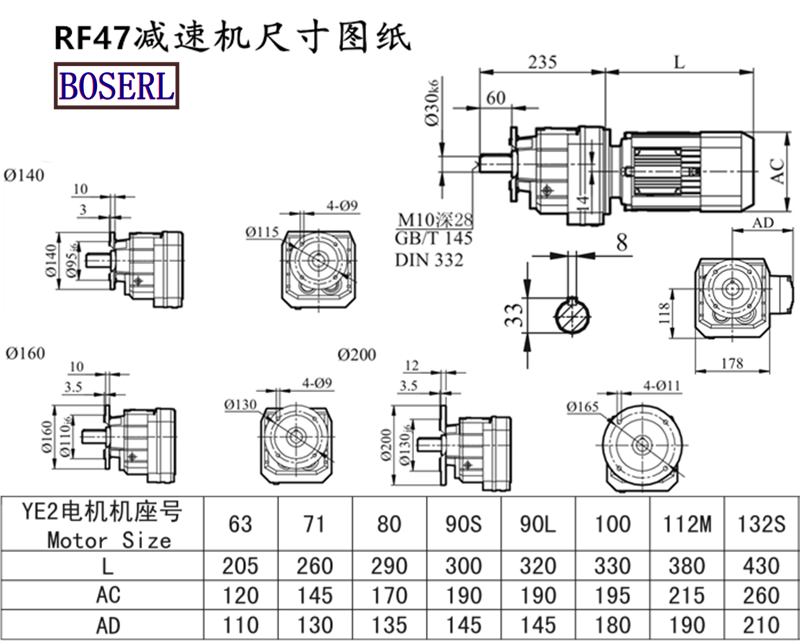

RF47DRE71M4齒輪減速機馬達安裝尺寸圖紙
RF47DRE71M4齒輪減速機馬達生產工廠展示：看廠請提前三天預約
立式減速機應用案例展示：
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 18.5KW380伏減速機電機 RF47DRE71M4 RF47DM71M4
