FAF87DV180S4詳細信息
FAF87DV180S4
關鍵詞：陶瓷機械硬齒面減速機電機_FAF87DV180S4_FAF87DRN180S4
FAF87DV180S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF87DV180S4 | 21.32 | 18.5KW | 69.0rpm | 2570N.m | 322kg | 10900N | 1.15 |
| FAF87DV180S4 | 19.31 | 18.5KW | 76.0rpm | 2320N.m | 322kg | 11100N | 1.30 |
| FAF87DV180S4 | 17.12 | 18.5KW | 86.0rpm | 2060N.m | 322kg | 11400N | 1.45 |
| FAF87DV180S4 | 15.48 | 18.5KW | 95.0rpm | 1860N.m | 322kg | 11500N | 1.60 |
| FAF87DV180S4 | 13.12 | 18.5KW | 112rpm | 1580N.m | 322kg | 11600N | 1.90 |
| FAF87DV180S4 | 11.46 | 18.5KW | 128rpm | 1380N.m | 322kg | 11600N | 2.20 |
| FAF87DV180S4 | 9.58 | 18.5KW | 153rpm | 1150N.m | 322kg | 11500N | 2.50 |
| FAF87DV180S4 | 8.29 | 18.5KW | 177rpm | 990N.m | 322kg | 10900N | 1.55 |
| FAF87DV180S4 | 7.35 | 18.5KW | 199rpm | 880N.m | 322kg | 10800N | 1.75 |
| FAF87DV180S4 | 6.65 | 18.5KW | 220rpm | 800N.m | 322kg | 10700N | 1.90 |
| FAF87DV180S4 | 5.63 | 18.5KW | 260rpm | 675N.m | 322kg | 10400N | 2.20 |
| FAF87DV180S4 | 4.92 | 18.5KW | 298rpm | 590N.m | 322kg | 10200N | 2.60 |
| FAF87DV180S4 | 4.12 | 18.5KW | 356rpm | 495N.m | 322kg | 9900N | 2.90 |
FAF87DRN180S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF87DRN180S4 | 21.32 | 18.5KW | 69.0rpm | 2570N.m | 322kg | 10900N | 1.15 |
| FAF87DRN180S4 | 19.31 | 18.5KW | 76.0rpm | 2320N.m | 322kg | 11100N | 1.30 |
| FAF87DRN180S4 | 17.12 | 18.5KW | 86.0rpm | 2060N.m | 322kg | 11400N | 1.45 |
| FAF87DRN180S4 | 15.48 | 18.5KW | 95.0rpm | 1860N.m | 322kg | 11500N | 1.60 |
| FAF87DRN180S4 | 13.12 | 18.5KW | 112rpm | 1580N.m | 322kg | 11600N | 1.90 |
| FAF87DRN180S4 | 11.46 | 18.5KW | 128rpm | 1380N.m | 322kg | 11600N | 2.20 |
| FAF87DRN180S4 | 9.58 | 18.5KW | 153rpm | 1150N.m | 322kg | 11500N | 2.50 |
| FAF87DRN180S4 | 8.29 | 18.5KW | 177rpm | 990N.m | 322kg | 10900N | 1.55 |
| FAF87DRN180S4 | 7.35 | 18.5KW | 199rpm | 880N.m | 322kg | 10800N | 1.75 |
| FAF87DRN180S4 | 6.65 | 18.5KW | 220rpm | 800N.m | 322kg | 10700N | 1.90 |
| FAF87DRN180S4 | 5.63 | 18.5KW | 260rpm | 675N.m | 322kg | 10400N | 2.20 |
| FAF87DRN180S4 | 4.92 | 18.5KW | 298rpm | 590N.m | 322kg | 10200N | 2.60 |
| FAF87DRN180S4 | 4.12 | 18.5KW | 356rpm | 495N.m | 322kg | 9900N | 2.90 |
FAF87DV180S4電機減速器類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

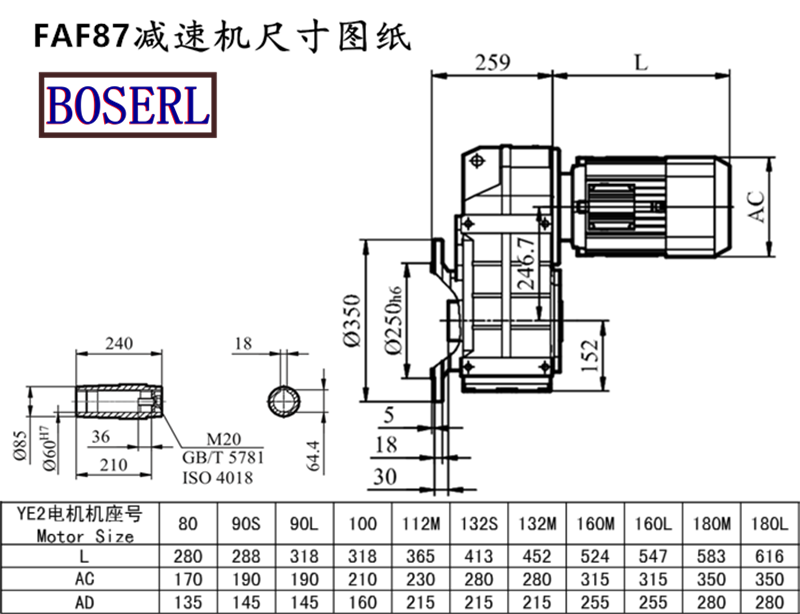

FAF87DV180S4電機減速器安裝尺寸圖紙
FAF87DV180S4電機減速器生產廠家，看廠請?zhí)崆叭祛A(yù)約三相220V電機減速機
關鍵詞:FAF系列減速機與電機_220V電機減速機一套_三相220V電機減速器_380V電機減速機_三相380V電機減速器_三相減速電機_三相減速機生產廠家
FAF系列減速機型號：FAF27減速機,FAF37減速機,FAF47減速機,FAF67減速機,FAF77減速機,FAF87減速機,FAF97減速機,FAF107減速機,FAF127減速機,FAF157減速機
FAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 陶瓷機械硬齒面減速機電機 FAF87DV180S4 FAF87DRN180S4
