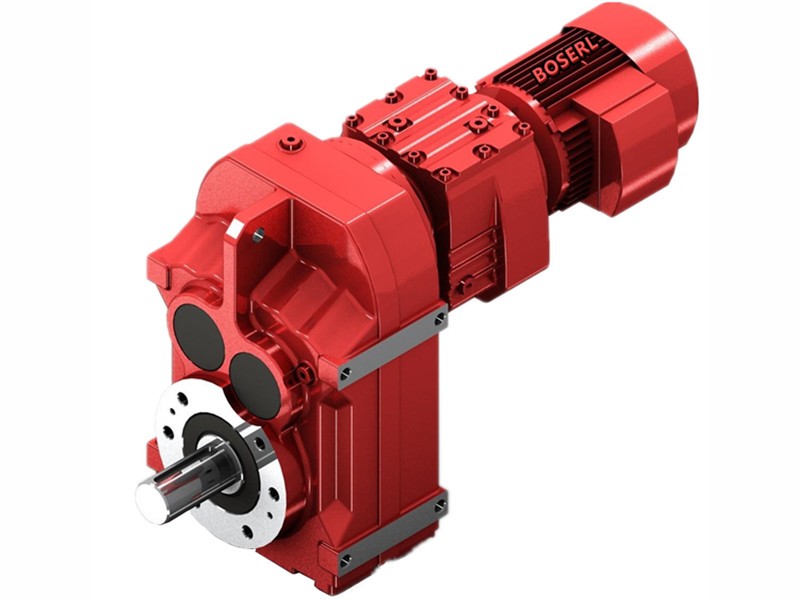

F57R37DM71S4詳細信息
F57R37DM71S4
關鍵詞：0.37KW電機如何配平行軸減速電機_F57R37DM71S4_F57R37DRS63MS4
F57R37DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F57R37DM71S4 | 386 | 0.25KW | 3.40r/min | 620N.m | 52.5kg | 8830N | 0.95 |
| F57R37DM71S4 | 338 | 0.25KW | 3.80r/min | 540N.m | 52.5kg | 9640N | 1.10 |
| F57R37DM71S4 | 255 | 0.25KW | 5.10r/min | 405N.m | 52.5kg | 10500N | 1.45 |
| F57R37DM71S4 | 382 | 0.25KW | 3.40r/min | 635N.m | 52.5kg | 7390N | 0.95 |
| F57R37DM71S4 | 330 | 0.25KW | 3.90r/min | 550N.m | 52.5kg | 9570N | 1.10 |
| F57R37DM71S4 | 298 | 0.25KW | 4.40r/min | 495N.m | 52.5kg | 9950N | 1.20 |
| F57R37DM71S4 | 262 | 0.25KW | 5.00r/min | 435N.m | 52.5kg | 10300N | 1.35 |
| F57R37DM71S4 | 226 | 0.25KW | 5.80r/min | 370N.m | 52.5kg | 10700N | 1.60 |
| F57R37DM71S4 | 200 | 0.25KW | 6.50r/min | 320N.m | 52.5kg | 11000N | 1.85 |
| F57R37DM71S4 | 170 | 0.25KW | 7.60r/min | 275N.m | 52.5kg | 11300N | 2.20 |
F57R37DRS63MS4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F57R37DRS63MS4 | 851 | 0.12KW | 1.60r/min | 610N.m | 48kg | 9100N | 1.00 |
| F57R37DRS63MS4 | 738 | 0.12KW | 1.90r/min | 520N.m | 48kg | 9750N | 1.15 |
| F57R37DRS63MS4 | 646 | 0.12KW | 2.10r/min | 455N.m | 48kg | 10200N | 1.30 |
| F57R37DRS63MS4 | 558 | 0.12KW | 2.50r/min | 385N.m | 48kg | 10600N | 1.55 |
| F57R37DRS63MS4 | 506 | 0.12KW | 2.70r/min | 345N.m | 48kg | 10900N | 1.75 |
| F57R37DRS63MS4 | 452 | 0.12KW | 3.00r/min | 295N.m | 48kg | 11100N | 2.00 |
| F57R37DRS63MS4 | 426 | 0.12KW | 3.20r/min | 310N.m | 48kg | 11100N | 1.95 |
| F57R37DRS63MS4 | 382 | 0.12KW | 3.60r/min | 270N.m | 48kg | 11300N | 2.20 |
| F57R37DRS63MS4 | 330 | 0.12KW | 4.20r/min | 230N.m | 48kg | 11500N | 2.60 |
| F57R37DRS63MS4 | 298 | 0.12KW | 4.60r/min | 210N.m | 48kg | 11500N | 2.80 |
| F57R37DRS63MS4 | 262 | 0.12KW | 5.30r/min | 185N.m | 48kg | 11500N | 3.20 |
F57R37DM71S4減速機電動機類型：
F57R37DM71S4底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA57BR37DM71S4底腳空心軸安裝平行軸—斜齒輪減速機
FV57BR37DM71S4底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA57R37DM71S4空心軸安裝平行軸—斜齒輪減速機
FV57R37DM71S4花鍵空心軸安裝平行軸—斜齒輪減速機
FAF57R37DM71S4是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF57R37DM71S4是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ57R37DM71S4是B14法蘭安裝平行軸—斜齒輪減速機
FVZ57R37DM71S4是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF57R37DM71S4是B5法蘭安裝平行軸—斜齒輪減速機
FH57BR37DM71S4底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH57R37DM71S4是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF57R37DM71S4是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ57R37DM71S4是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
F57R37DM71S4減速機電動機安裝尺寸圖紙
F57R37DM71S4減速機電動機生產廠家，看廠請?zhí)崆叭祛A(yù)約F系列減速機
關鍵詞:F系列減速機與電機_齒輪減速機與電機一套_斜齒輪減速器與電機_F系列齒輪減速機_減速機與電機_電機與減速機_F系列減速機生產廠家
F系列減速機型號：F27減速機,F37減速機,F47減速機,F67減速機,F77減速機,F87減速機,F97減速機,F107減速機,F127減速機,F157減速機
F系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
